Royalite® R104

Royalite® R104

General Description

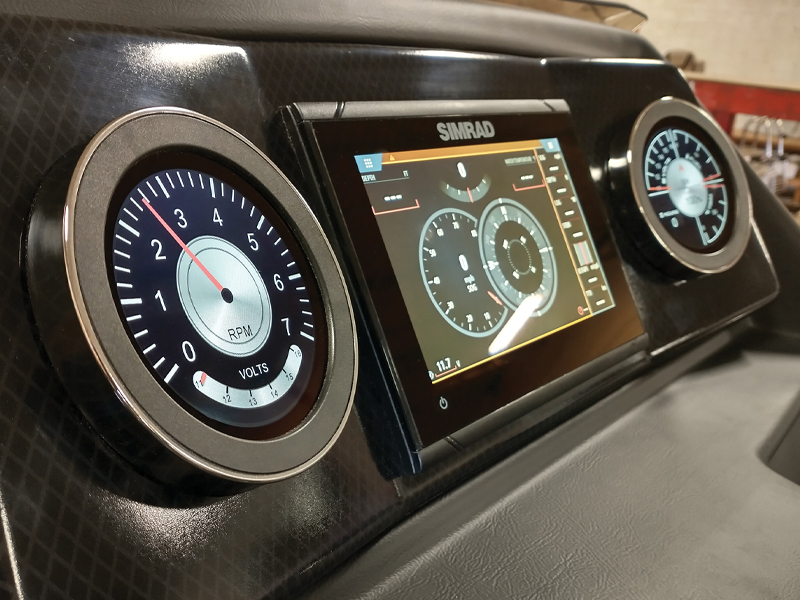

Royalite® R104 laminate provides a “soft feel” aesthetically appealing material that is suited for automotive consoles, truck and RV dashes and headliners and even boating applications. R104 consists of a soft-to-the-touch layer supported by a rigid ABS backing, giving excellent physical characteristics such as impact strength and ductility.


Properties Test Method Value UOM
Specific Gravity (color dependent) ASTM D-792 1.06 n/a
Tensile Strength ASTM D-638 4,600 psi
Flexural Strength ASTM D-790 8,500 psi
Flexural Modulus ASTM D-790 274,000 psi
Hardness (Shore D) ASTM D-2240 75 n/a
Heat Deflection Temperature @264 psi, Annealed ASTM D-648 185 °F
Coefficient of Linear Thermal Expansion ASTM D-696 5 x10-5 in/in/°F
Izod Impact (Notched) 72°F ASTM D-256 4.5 ft-lbs/in
Izod Impact (Notched) -20°F ASTM D-256 1.5 ft-lbs/in
Flammability FMVSS 302 Passes n/a


Properties Test Method Value UOM
Chemical Resistancen/an/a
Flexural Modulus (stiffness)n/aVery Highn/a
Formabilityn/aVery Goodn/a
Gloss After Formingn/an/a
Hardnessn/aVery Highn/a
Heat Deflection Temperaturen/aHighn/a
Impact Strengthn/aVery Highn/a
Low Temperature Impact Strengthn/aHighn/a
Tensile Strengthn/aVery Highn/a
UV Resistancen/aLown/a
Spartech Royalite® R104

Product Information

Item Description
Product Line Royalite®
Item Code Royalite® R104
Material Description Soft Touch ABS
Product Description Soft Feel Rigid Thermoplastic Sheet
  • Very high Impact strength and ductility
  • One step thermoforming
  • Passes: Motor Vehicle Standard FMVSS 302
BenefitsRoyalite® R104 is backed with a rigid ABS substrate that has very high impact strength, good tensile strength, excellent ductility and good formability.
  • Automotive consoles
  • Dash and door panels


Polymer Tag Polymer Name
ABS Acrylonitrile Butadiene Styrene
Alloy Thermoplastic Alloy

Related Documents

Title Open
Royalite® R104 Soft-Feel Laminate Material Open
TDS—Royalite® R104 ABS Open
AIS—Royalite® R21 W R104 Open
AIS—Royalite® R901 W R104 Open

*All values based on 0.125" unless otherwise stated

Customers are responsible for determining whether products and information are appropriate for their use, including the evaluation of all applicable laws. Spartech LLC assumes no liability for the accuracy or completeness of information contained herein, and such information is subject to change without notice. All products supplied are subject to the standard terms and conditions of sale of Spartech LLC. NO WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, IS MADE BY THIS TECHNICAL DATA SHEET. ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY EXCLUDED.
